ALL PRICES ARE IN CANADIAN DOLLARS
ITEM NAME :
  NEW AND USED UNCUT SR20DET MAIN ENGINE WIRING HARNESS
Brand new and used UNCUT sr20det main engine wiring harness



We stock BRAND NEW and used ,OEM Nissan sr20det s13 redtop, s13 black top, s14 kouki and s14 zenki complete wiring harness's. A good harness is the most important element to a reliable and clean sr20det conversion. Prices do fluctuate slightly with the currency exchange rates.

PRICE :

sr20det s13 redtop brand new: $ 599
sr20det s13 redtop used: $ 479
sr20det s14 used: $ 499
sr20det s14 brand new: $ 649

ITEM NAME :
  REDTOP S13 SR20DET ENGINE SET **COMPLETE**
S13 Redtop

Redtop sr20det motors are removed from 1991-1994 nissan 180's And silvia's and then shipped to us in Canada. Engine sets come complete with the following necessities.

- UNCUT WIRING HARNESS
- ECU
- IGNITOR CHIP
- COMPLETE ENGINE AND TRANNY WITH ALL ATTACHED SENSORS
- TURBO
- INTAKE AND EXHAUST MANIFOLDS
- 30 DAY WARRANTY

PRICE : $ 2699

ITEM NAME :
  BLACKTOP S13 SR20DET ENGINE SET **COMPLETE*8

S13 Blacktop SR20DET Engine Set

S13 Blacktop SR20DET Engine Set




BLACKTOP sr20det motors are removed from 1994-1998 nissan 180's and then shipped to us in Canada. Engine sets come complete with the following necessities. 180sc type-x engines come in sometime's and will be advertised accordingly.

- UNCUT WIRING HARNESS
- ECU
- IGNITOR CHIP
- COMPLETE ENGINE AND TRANNY WITH ALL ATTACHED SENSORS
- TURBO
- INTAKE AND EXHAUST MANIFOLDS
- 30 DAY WARRANTY

PRICE : $ 2999


ITEM NAME :
  NISSAN S14 BLACKTOP SR20DET ENGINE SET **COMPLETE**
S14 sr20det engine


BLACKTOP s14 sr20det motors are removed from 1994-1998 nissan Silvia S14's and then shipped to us in Canada. Engine sets come complete with the following necessities.

- UNCUT WIRING HARNESS
- ECU
- IGNITOR CHIP
- COMPLETE ENGINE AND TRANNY WITH ALL ATTACHED SENSORS
- TURBO
- INTAKE AND EXHAUST MANIFOLDS
- 30 DAY WARRANTY

PRICE : $ 3199

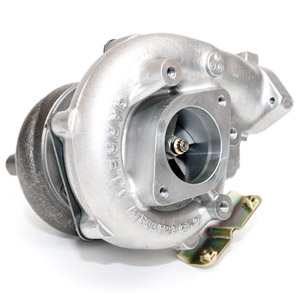

ITEM NAME :   GARRETT DUAL BALL BEARING TURBO: GT2871R - SR20DET BOLT ON
(Also perfect for ka24de-t)
Garrett Dual Ball Bearing Turbo

Dual Ball Bearing GT2871R turbo (base Garrett P/N 472560-15) assembly with T25 style turbine inlet. Comes with internally wastegated style T25 style turbine housing and GT28R style compressor housing.

This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 400HP. The external packaging of this turbo can be identical to that of the GT28R (if GT28R style actuator is chosen) and can be a nice stealty upgrade to step up to 400HP of flow without much re-arrangement. GT28RS style actuator is available for kit applications where the end housings are similar, but the wastegate position is unique and the actuator mounting position requires more flexibility with regard to compressor housing rotation (clocking position).

PRICE: $ 1499

ITEM NAME :   WASTEGATE ACTUATORS FOR GARRETT TURBO 2871r, 7-21 psi.
WASTEGATE ACTUATORS FOR GARRETT TURBO 2871r, 7-21 psi.   PRICE : $ 169.99
ITEM NAME :   APEXI HEAD GASKET SR20DET
Apexi Head Gasket SR220DET   PRICE : $ 299.99
ITEM NAME :   EXEDY RACING CLUTCH- STAGE 2 -06950B
Exedy Racing Clutch - Stage 2 - 06950B

Exedy Stage 2 Clutch Kit for the S13, S14, S15 SR20DET comes with 3 main metallic puck plates with a sprung center for street use. This clutch kit can withstand 400hp, about 350 ft. lbs. of torque. The kit comes with everything you need; pilot bushing, throw out bearing, clutch disc, pressure plate, and clutch alignment tools for install.

Clutch Specs:

- Number of Discs: SINGLE
- Clamp Load (lbs): 1760
- Disc Outer Diameter: 240
- Spline Teeth / Major Diameter: 24T / 25.6
- Disc thickness: 7.94mm

PRICE: $ 575.99

ITEM NAME :   ARP HEAD STUDS SR20DET S13 AND S14

ARP HEAD STUDS SR20DET S13 AND S14

ARP HEAD STUDS SR20DET S13 AND S14

  PRICE: $ 249.99
  ARP MAIN STUDS


Obtaining the optimum cylinder head-to-block sealing is especially critical in small displacement engines employing high compression pistons or power adders like turbochargers, nitrous oxide and superchargers. That's why ARP® head studs are popular among leading Sport Compact/Import racers.

You should know that ARP® uses a premium grade 8740 alloy that is rated far superior to "aircraft" quality. Then, each stud is precisely heat-treated to 200,000 psi. Following heat treatment, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. It's important to note that lesser quality studs are not even centerless ground--the material is thread rolled in bar stock form (mostly before heat-treat, when the material is easier to machine). Because ARP® studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned--something that won't happen with inferior quality head studs.

ARP® studs are thread rolled after heat-treat, which gives them about 1000% (that's ten times) better fatigue strength than those studs that are threaded prior to heat-treat.

You will also note that ARP® offers specially undercut studs for several engines. This procedure (done only to the shorter studs) more equalizes the "stretch" of both studs, which makes for a more consistent clamping force--one that compensates for head gasket compression when the head is installed. This helps prevent blown head gaskets, and assures optimum sealing!

Premium parallel ground washers are also included with each kit.

PRICE: $ 169.99

ITEM NAME :   HKS- SSQV BLOW OFF VALVE
HKS - SSQV BLOW OFF VALVE

The Super Sequential Blow-Off Valve (SSQV) is a pull type relief valve. This means that pressure forces the valve shut unlike most valves which are pushed open slightly under boost. The SSQV is actuated by pressure alterations only, ensuring quick valve response and complete closure during idle.

Typical blow-off valves utilize large valves in order to accommodate high boost/high hp applications. However, these large valves react slowly and require high activation pressure to open. Smaller, fast reacting valves, do not permit the air flow required for high horsepower. The SSQV incorporates both for maximum performance. It is engineered utilizing a small primary valve and a secondary valve for additional relief capacity. The SSQV is made of billet aluminum and emits a unique aggressive sound.

Universal-fit SSQV kits now available in the standard aluminum finish and the New Black Limited Finish! Custom-fit kits (kits for specific automobiles) available only with Aluminum finish.

PRICE: $ 349.99

ITEM NAME :   GREDDY INTERCOOLER KITS
Greddy Intercooler Kit

FOR S13 or s14 WITH SR20DET SWAP ONLY. Greddy intercooler kits have 2 different types, the Greddy V-Spec intercooler and the Greddy R-Spec intercooler. The Greddy intercooler kits include all the necessary mounts, piping and hoses. Our engineers properly size the number of rows in the core and tune the internal core with either a V-Spec core or with a different inner fin pattern in the R-Spec. Either VSPL or RSPL Greddy intercooler kits offer the perfect balance of heat exchanging efficiency and flow.

If this intercooler does not suit your needs or budget, call us, we have many other alternatives in stock !

PRICE:

VSPL: $ 1250
RSPL: $ 1500

ITEM NAME :   WALBRO 255 LPH HIGH PRESSURE FUEL PUMP WITH BOLT-IN KIT
Walbro 255 LPH High Pressure Fuel Pump with Bolt-in Kit

WALBRO high flow 255 LPH fuel pump - any car you need this for, we can supply it!

Walbro Fuel Pumps. The fuel delivery capability of the stock EFI fuel pumps (also referred to as electronic fuel pumps or fuel injection pumps) is often not sufficient for high-boost applications or systems with additional injectors. When adding larger turbos, running higher boost or forced induction, and most race applications require a high-flow fuel pump. These fuel pumps are a bolt-in replacement for the stock fuel pump. These Walbro fuel injection pump kits come with the exact hardware required to make fuel pump installation a breeze! All fuel pump installation hardware is included! These 255 liter-per-hour fuel pumps are conservatively capable of supporting over 640 HP in naturally aspirated motors, and over 530 HP in forced-induction applications. These are complete fuel pump kits and include all drop parts, accessories and installation instructions. Also included is an inlet filter that meets or exceeds original equipment specifications and provides improved filtration and durability.

APPLICATION:

1989 - 1998 NISSAN 240SX 255 LPH PUMP AND KIT
Fuel Pump Model #: GSS-341 Fuel
Pump Kit Model #: 400-766

INCLUDES:

Fuel Pump
Wire Connectors For Upgrade
O-Rings
Micron Filter Element

PRICE: $ 149.99

WE ALWAYS STOCK SR20DET GASKETS & MISCELLANEOUS REPLACEMENT OEM PARTS ETC !
PLEASE CALL 1-416-910-5550 OR ANYTIME
